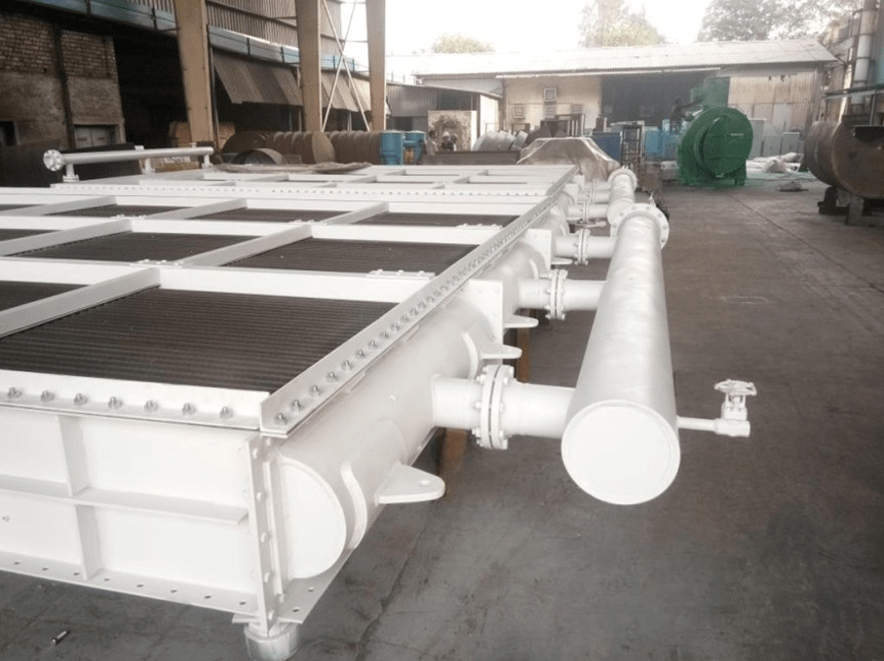

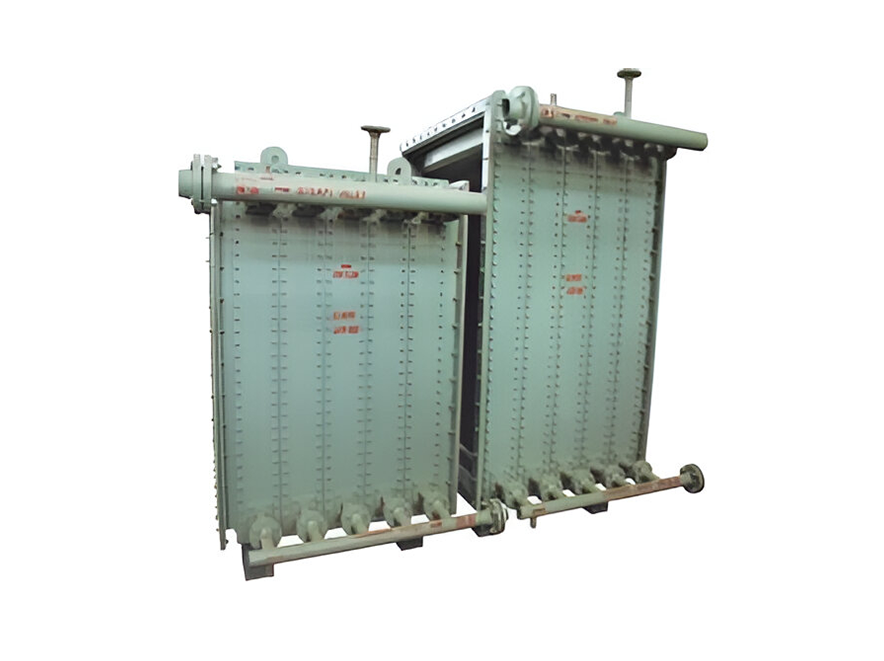

Steam Coil Air Pre Heater

Overview

Efficient Heat Recovery Systems – Available in LP/HP Design with Optional PED / ASME U Code Certification

At C Doctor India Pvt. Ltd., we offer expertly engineered Steam Coil Air Preheaters (SCAPH) designed to preheat combustion air using steam, thereby improving boiler efficiency, reducing fuel consumption, and minimizing emissions. Our SCAPH units are available in both Low Pressure (LP) and High Pressure (HP) variants and can be customized for a wide range of industrial heating applications.

With an emphasis on quality and global compliance, our steam coil air preheaters can be optionally manufactured to meet PED (Pressure Equipment Directive) and ASME Section VIII, Division 1 (U Stamp) certification requirements, making them suitable for domestic and international projects.

Key Features of Our Steam Coil Air Preheaters

✔ LP & HP Configurations

LP Type: For low-pressure steam applications typically below 3.5 bar(g)

HP Type: Suitable for high-pressure operations up to 40 bar(g) or more, depending on design

✔ PED / ASME U Code Certified (Optional)
Units can be designed and fabricated as per PED 2014/68/EU or ASME U Stamp standards for regulated markets and critical process requirements.

✔ High-Efficiency Fin Tubes
Manufactured with carbon steel, stainless steel, or alloy tubes with spiral fins for superior heat transfer and long life in harsh environments.
